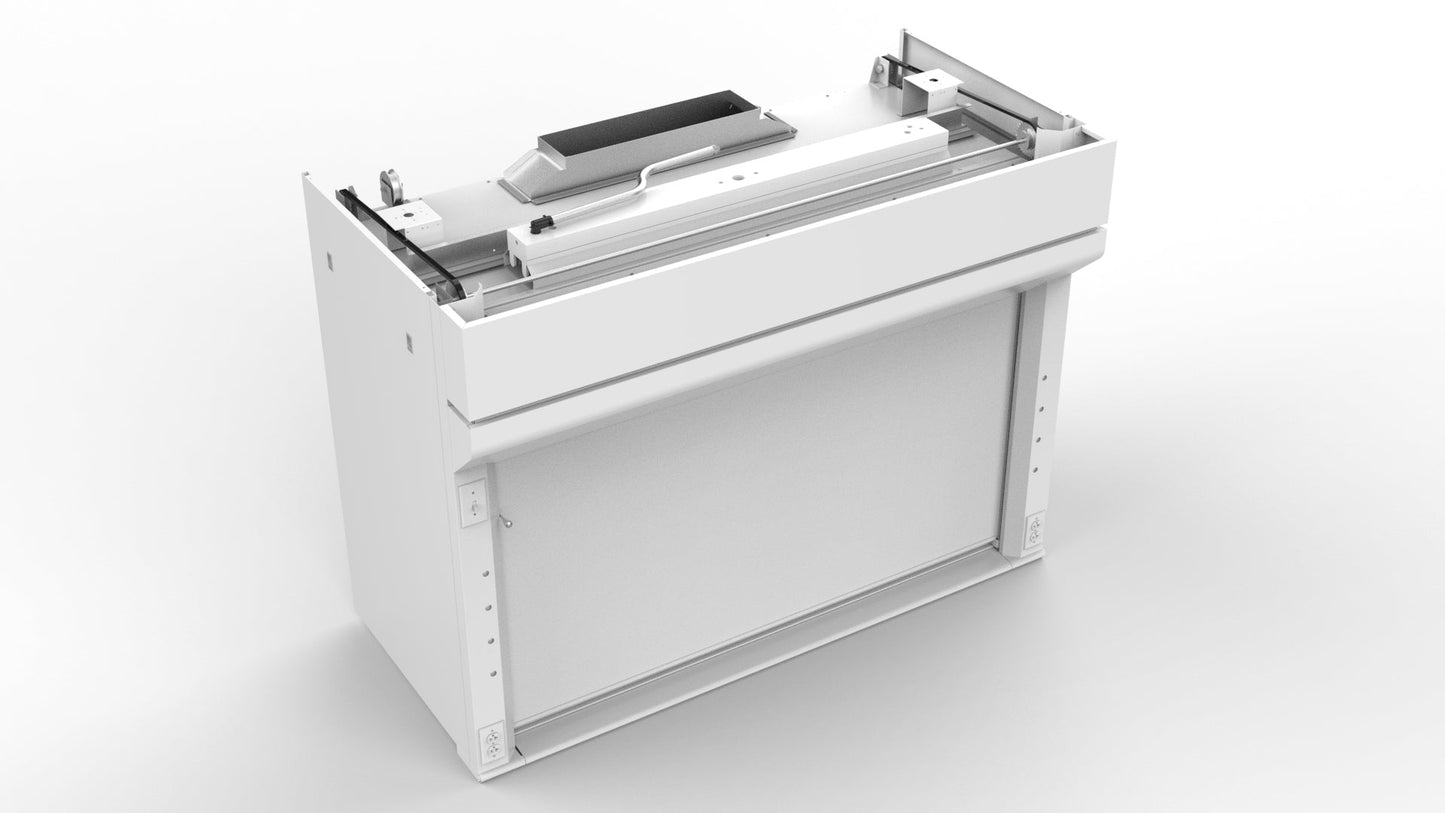

Concept Fume Hood Superstructure
Concept Fume Hood Superstructure
Regular price
$9,022.00 USD
Regular price
Sale price
$9,022.00 USD
Unit price
per
Couldn't load pickup availability
-
Viewing height - viewable face opening is a full
35" (889 mm) high for optimum visibility of fume hood interior -
Combine with work surface and fume hood base cabinet to make a
-
custom assembly for base cabinets
- AutoSash (passive positioning system) - sash locks in set-up position and automatically returns to maximum operational height of 18" (457 mm) when lock is released
- Frameless vertical rising sash is standard
- Low profile sill airfoil - the top surface of the airfoil is flush with the work surface for obstruction-free access to fume hood interior
-
Chain and sprocket sash counterbalance system features alignment
shaft and sash leveling system -
Preset fixed baffle system - no adjustment required - factory tuned
for optimal airflow characteristics -
Designed for 60-100 feet per minute face velocities
Downdraft bypass - improves airflow through bypass area with increased volume and less resistance for quieter operation -
White polyresin asbestos-free lining - side wall access panels with
PVC gasket -
Two-tube fluorescent light fixture, light switch, and two duplex 120
volt electrical receptacles - Pre-wired fume hoods include plugged holes for future fixture on both posts
Materials
Materials
Powder coated steel.
Care Instructions
Care Instructions
Wash with mild detergent. Rinse with distilled water.
